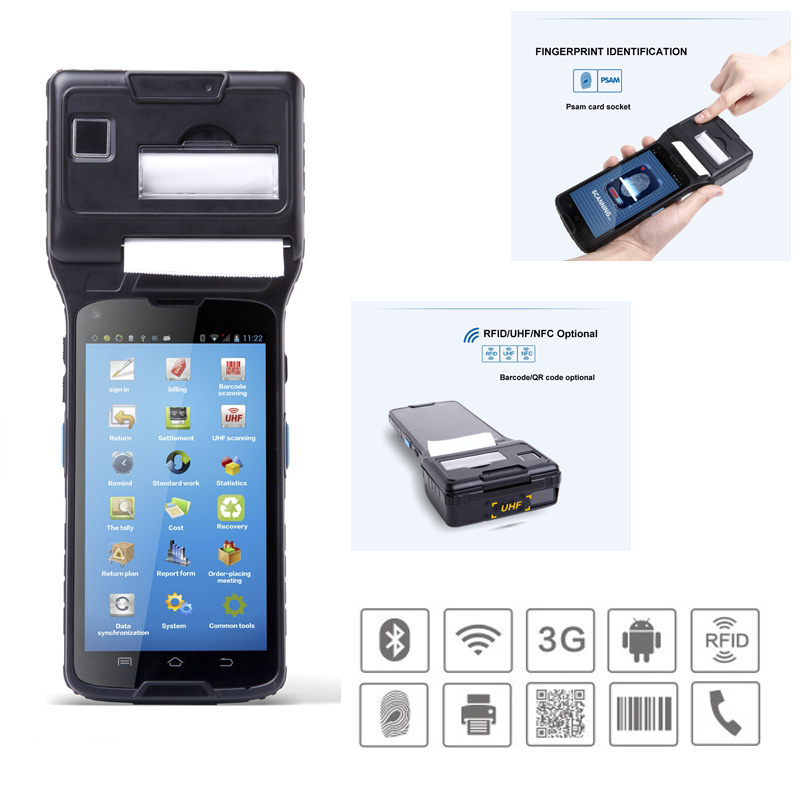

Handheld Specifications



OS: Android 4.2.2

CPU: 1.3 GHz Quad Core

Memory: 1 GB SDRAM, 4GB NAND FLASH, Expandable 32GB

Display: IPS 5" touch screen, resolution 1280*720 dpi

Operation button: 2 scan buttons, 1 power on/off button

Communication:

    WLAN:  802.11b/g/n

    USB: 1 Micro USB

    GSM: 850/900/1800/1900 MHz

    GPRS/3G: WCDMA 2100 MHz, CDMA 2000

    Bluetooth: BT 2.0

Power:

    Battery: Rechargeable 3.7V, 4000 mAh Battery

    Charging method: direct or cradle

    Charging time: 5 hours

    Standby time: 72 hours

Thermal printer: 2 inch printer head, 384 dot/row, 45mm/sec

NFC: 13.56 MHz (ISO14443A/B; ISO 15693)

UHF: 920-925 MHz (50-80 cm reading range) - OPTIONAL

1 Dimension code: Code 128, EAN-13 etc - OPTIONAL

2 Dimension code: QR, PDF417, etc  - OPTIONAL

Camera: 8.0 Mega pixel, auto-focus

GPS: GPS and A-GPS

Fingerprint identification - OPTIONAL:

    Sensor: FPC1011F1, Processor: FPC2020Q1(64 pin QFN 9*9 mm)

Size: 145*78*16 mm/544.5g (with battery), 463g (without battery)

Protection class: IP54

Working Temp.: -10 to +45 degree

Storage Temp.: -20 to +55 degree

Humidity: 5 - 95%
