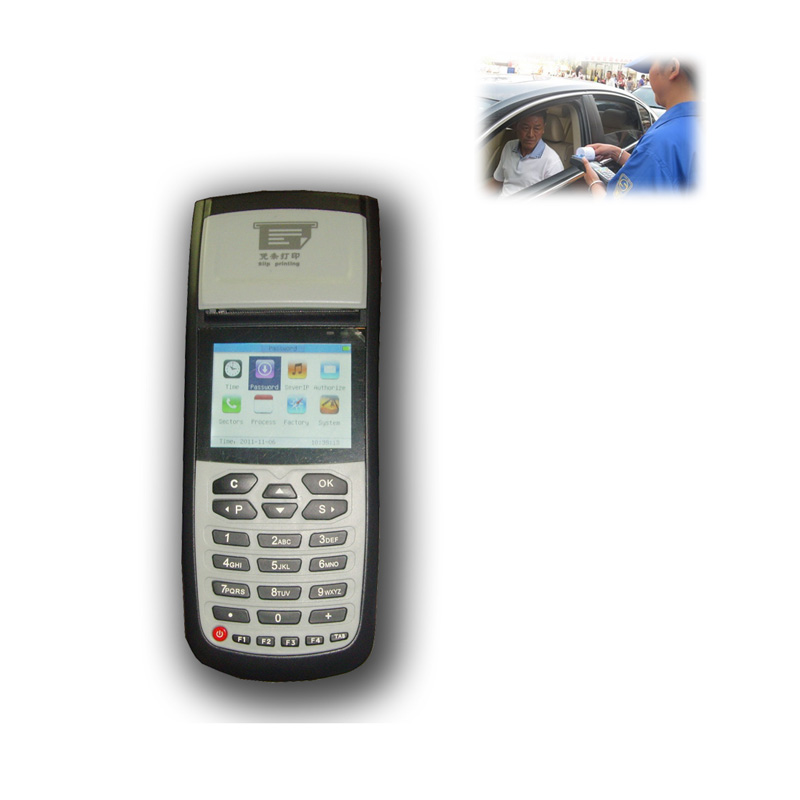

Handheld 02
Dimension: 217*83*46mm
Display: 3.5 inch TFT color screen 320*240
Case: Engineering plastics, anti-static coating, isolate high-frequency interference
CPU: 32-bit high speed CPU, ARM kernel, main frequency 98MHz
Battery: 4000 mAh
Developing environment: second development of C, C++, IDE Linux 2.6.3
Storage: Flash Memory 64Mbyte (can expand to 256Mbyte)
Internal memory: DRAM 32Mbyte (can expand to 64Mbyte)
External memory: 2G Micro SD card
Support type of card: Mifare Classic/Ultalight/DESFire, ISO14443A
Expanded sockets: one for SIM card, one for PSAM card, one for Micro SD card
Way of communication: GPRS
Working voltage: 3.7V
Data volume: 20M storage space
Printer: Thermal printer
Ticket dimension: 58*30mm
Update system and download parameter: Via 2G Micro SD card
Working temperature: -30°C -85°C
Storage temperature: -40°C -85°C
Power consumption: Smart power supply management method, 12V power supply
Standby electric current: <15mA
